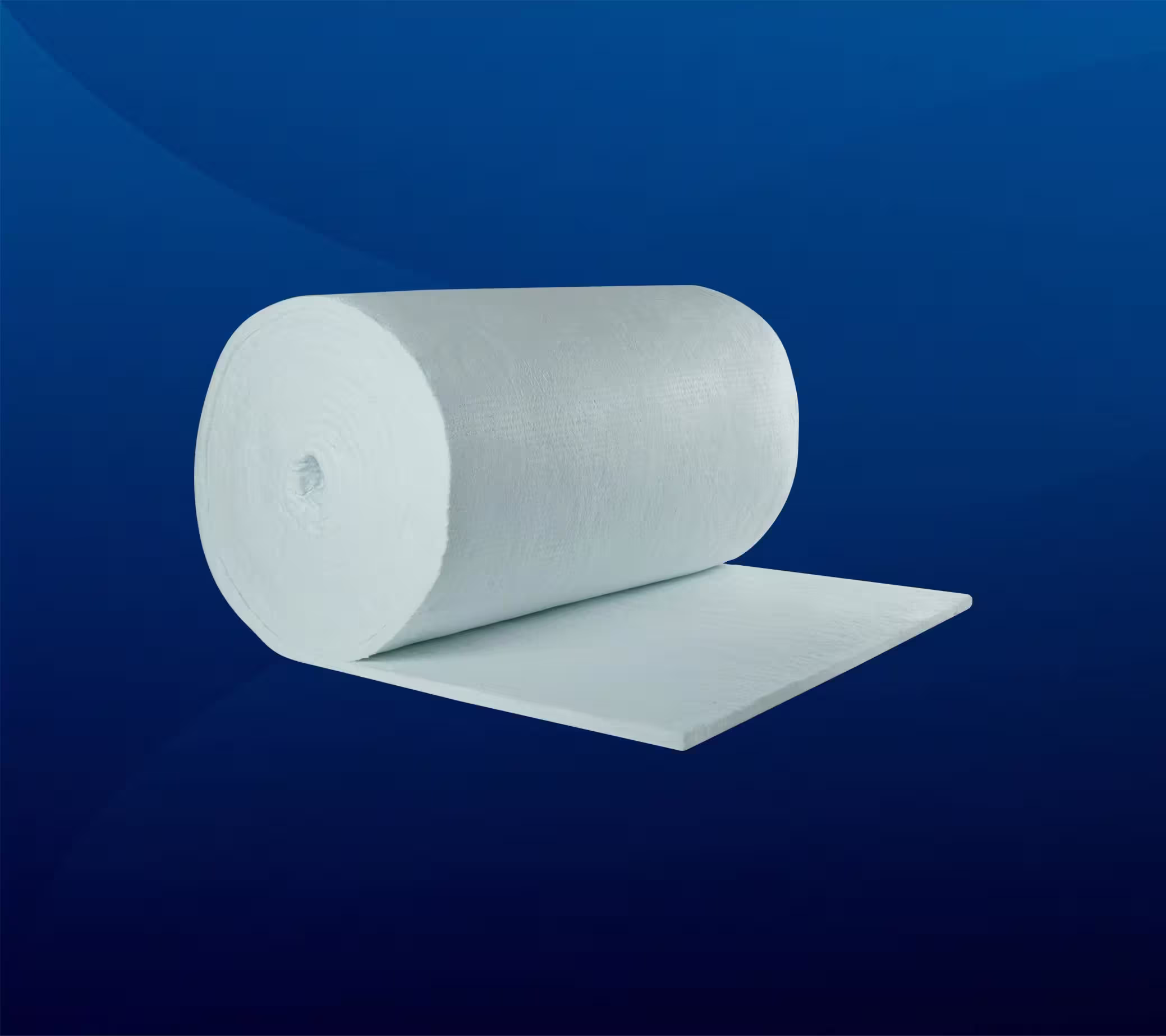

SuperMag HI 2200 low biopersistent fiber

SuperMag HI 2200

Low Biopersistence Fiber Blankets

SuperMag HI 2200 blankets are made from long strand spun, fine low bio-persistence (LBP) fibers with lower shot content forming a flexible needled product with high strength and superior thermal properties at temperatures up to 2200°F (1200°C), while offering lower thermal conductivity, less dust and reduced risk of irritation.

The strong needling of SuperMag HI 2200 blankets results in a completely inorganic, binder-free product that produces no smoke/outgassing.

SuperMag HI 2200 is available in a range of thicknesses and densities.

Physical Properties

  • Maximum Use Temperature

    2200°F (1200°C)

  • Continuous Use Temperature

    2012°F (1100°C)

  • Chemistry

    Calcium, Silica, Magnesium

  • Composition

    LBP (low biopersistence)

  • Shrinkage @ 2400°F / 24 hrs

    0-1.5%

  • Average Fiber Diameter

    2-3 Microns

Key Features

  • Low Thermal Conductivity & Shrinkage
  • Low Heat Storage
  • High Tensile Strength
  • Thermal Shock Resistance
  • Chemical Corrosion Resistant
  • Completely Inorganic
  • Contains no Asbestos
  • Excellent Sound Absorption
  • Flexible, Lightweight & Easy to Install

Related Industries

NUTEC_Appliances-Industry

Appliances

A broad portfolio of high-performance, custom-made products for commercial and domestic appliances.

NUTEC_Automotive-Industry

Automotive

Thin, lightweight and highly efficient insulation materials with a broad range of applications in the automotive industry.

NUTEC_Construction-Industry

Construction

Products specially developed for passive fire protection applications used in commercial construction.

Common Applications

  • Ranges
  • Ovens
  • Chimneys
  • Fire Rated Ceiling/Doors/Walls
  • Fire Rated Ducts
  • Flues
  • Boilers
  • Expansion Joints
  • Modular Insulation
  • Cable trays
  • Batteries
  • Vehicle Exhaust Insulation
  • Process Furnace linings
  • Slow Cool Cars
  • Soaking Pits
  • Ladle Covers
  • Structural
  • Heat Shields
  • Fire Barriers
  • Glass Tank Crowns
