VACUUM-FORMED SHAPES

Experience Superior Insulation with NUTEC's Vacuum-Formed Shapes

NUTEC Vacuum-Formed Shapes Portfolio

Vacuum forming is a wet forming process that uses various fiber types and binders to form the wet product. After forming, the product dried and finished to desired tolerances.Vacuum formed products can be made with organic or inorganic (no smoke) formulations to meet your product requirements. Vacuum formed shapes are available with special densities upon request and are available in a wide variety of shape configurations.

MaxForm shapes are processed from alumina and silica blends for applications with temperatures up to 3000°F (1650°C). SuperMag shapes are processed from a low biopersistent fiber (LBP), manufactured from pure raw materials and processed to offer excellent performance in high temperature application.

MaxForm® Refractory Ceramic Fiber Shapes Collection

MaxForm® LD 2300

MaxForm LD 2300 insulating shape is a low-density product manufactured to tight dimensional tolerances and an excellent surface finish. Considered for application in appliances and equipment where aesthetics, uniformity and performance are important.

Density lb/ft³ (kg/m³)
16-20 (256-320)
Maximum Use Temperature
2300°F (1260°C)
Continuous Use Temperature
2100°F (1150°C)

MaxForm® ILD 2300

MaxForm ILD 2300 is an Inorganic formulation so it can be used in applications where no off-gassing or related odors are acceptable, such as home appliances, lab furnaces and similar equipment.

Density lb/ft³ (kg/m³)
16-20 (256-320)
Maximum Use Temperature
2300°F (1260°C)
Continuous Use Temperature
2100°F (1150°C)

MaxForm® HD 2300

MaxForm HD 2300 insulating shapes are high-density products that offer the same tight dimensional tolerances and excellent surface finish as the MaxForm LD products but provide increased compressive strength and modulus of rupture.

Density lb/ft³ (kg/m³)
26-30 (416-480)
Maximum Use Temperature
2300°F (1260°C)
Continuous Use Temperature
2100°F (1150°C)

MaxForm® LD 2600

MaxForm LD 2600 insulating shape is a low-density product manufactured to tighter dimensional tolerances and excellent surface finish. Its temperature rating up to 2600°F makes it an excellent option for a vast range of applications where high-temperature resistance is required.

Density lb/ft³ (kg/m³)
16-20 (256-320)
Maximum Use Temperature
2600°F (1427°C)
Continuous Use Temperature
2300°F (1260°C)

MaxForm® HD 2600

MaxForm HD 2600 insulating shapes are high-density products that offer the same tight dimensional tolerances and excellent surface finish as the MaxForm LD product but provide increased compressive strength and modulus of rupture.

Density lb/ft³ (kg/m³)
26-30 (416-480)
Maximum Use Temperature
2600°F (1427°C)
Continuous Use Temperature
2300°F (1260°C)

MaxForm® LD 3000

MaxForm LD 3000 has the highest temperature rating of any NUTEC vacuum formed shape. Formulated from a blend of ceramic and mullite fibers that create an excellent high-temperature insulation form with low thermal shrinkage and excellent high-temperature stability.

Density lb/ft³ (kg/m³)
12-14 (192-224)
Maximum Use Temperature
3000°F (1649°C)
Continuous Use Temperature
2800°F (1482°C)

SuperMag Low Biopersistent Fiber Shapes Collection

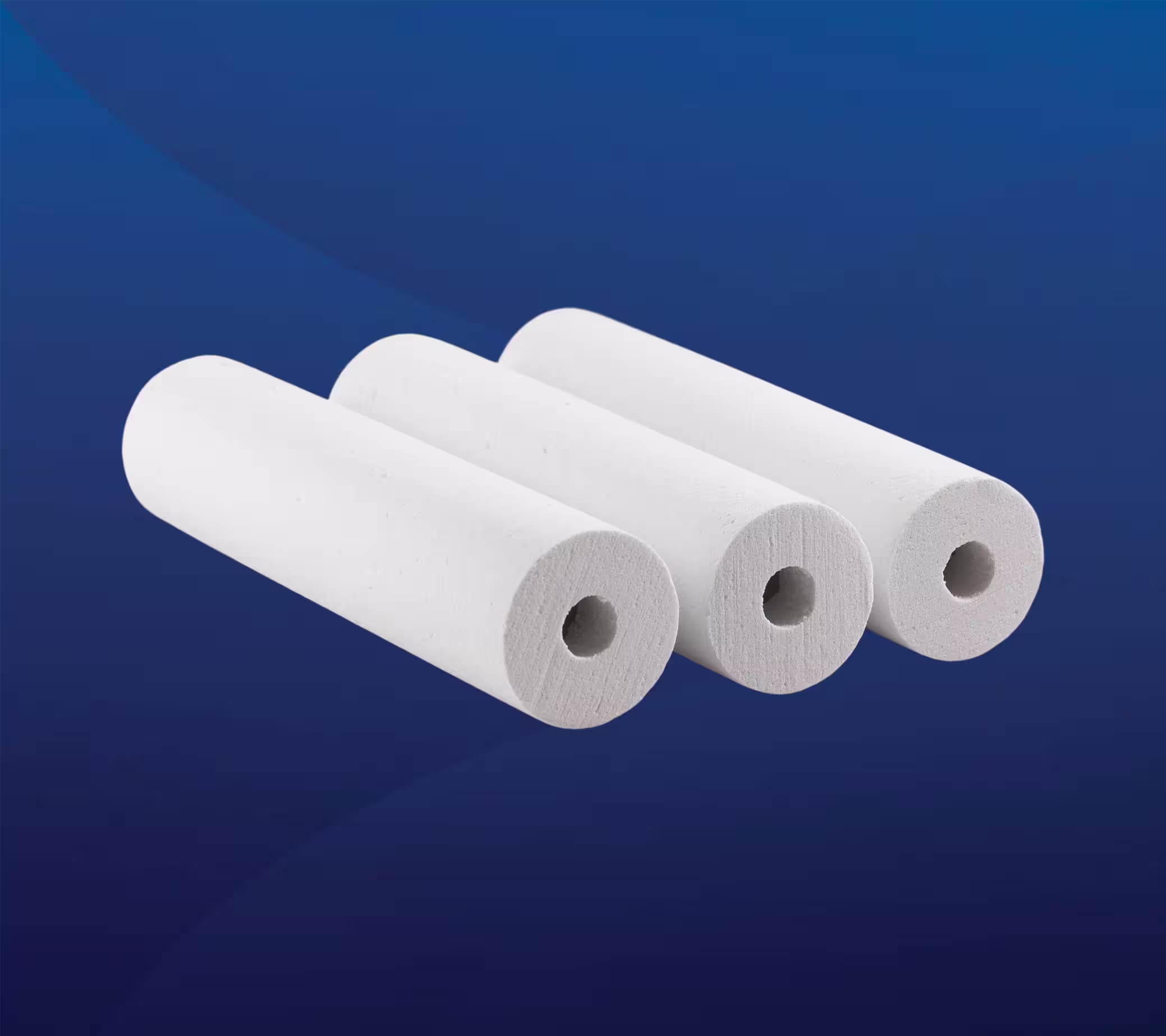

SuperMag LD 1900

SuperMag LD 1900 shapes are manufactured from alkaline earth silicate wool (AESW) blended with specially selected inorganic and organic binders to provide rigid forms with exceptional characteristics.

Density lb/ft³ (kg/m³)
16-20 (256-320)
Maximum Use Temperature
2192°F (1200°C)
Continuous Use Temperature
1832°F (1000°C)

SuperMag LD 2300

SuperMag LD 2300 shape is manufactured from alkaline earth silicate wool (AESW) blended with specially selected inorganic and organic binders and a speciﬁc mix of materials that gives it heat resistance and special thermal properties, it also provides rigid forms with exceptional characteristics.

Density lb/ft³ (kg/m³)
16-20 (256-320)
Maximum Use Temperature
2300°F (1260°C)
Continuous Use Temperature
2100°F (1150°C)
