MaxShield® SMG

Passive Fire Protection Low Biopersistent Fiber Blankets

MaxShield SMG blankets are made from long strand spun, fine low biopersistent (LBP) fibers with low shot content forming a flexible needled product with high strength and superior thermal properties at temperatures up to 2200°F (1200°C). The strong needling of MaxShield SMG blankets results in a completely inorganic, binder-free product that produces no smoke/outgassing.

MaxShield SMG is used in a variety of passive fire protection applications.

Physical Properties

  • Maximum Use Temperature

    2200°F (1200°C)

  • Continuous Use Temperature

    2012°F (1100°C)

  • Chemistry

    Calcium, Silica, Magnesium

  • Composition

    LBP (low biopersistence)

  • Shrinkage @ 2400°F / 24 hrs

    0-1.5%

  • Average Fiber Diameter

    3-4 Microns

Key Features

  • Low Thermal Conductivity & Shrinkage
  • Low Heat Storage
  • High Tensile Strength
  • Thermal Shock Resistance
  • Chemical Corrosion Resistant
  • Completely Inorganic
  • Contains no Asbestos
  • Excellent Sound Absorption
  • Flexible, Lightweight & Easy to Install

Related Industries

NUTEC_Fire_Protection-Industry

Fire Protection

High-temperature insulation products listed and certified for passive fire protection applications.

Discover our Fire Protection Solutions

Common Applications

  • Commercial Cooking Equipment
  • Self-cleaning ovens
  • Expansion Joints
  • Prefabricated Grease Ducts
  • Chimney Liners
  • Smoke & Fire Dampers

Related Products

MaxShield_HPS

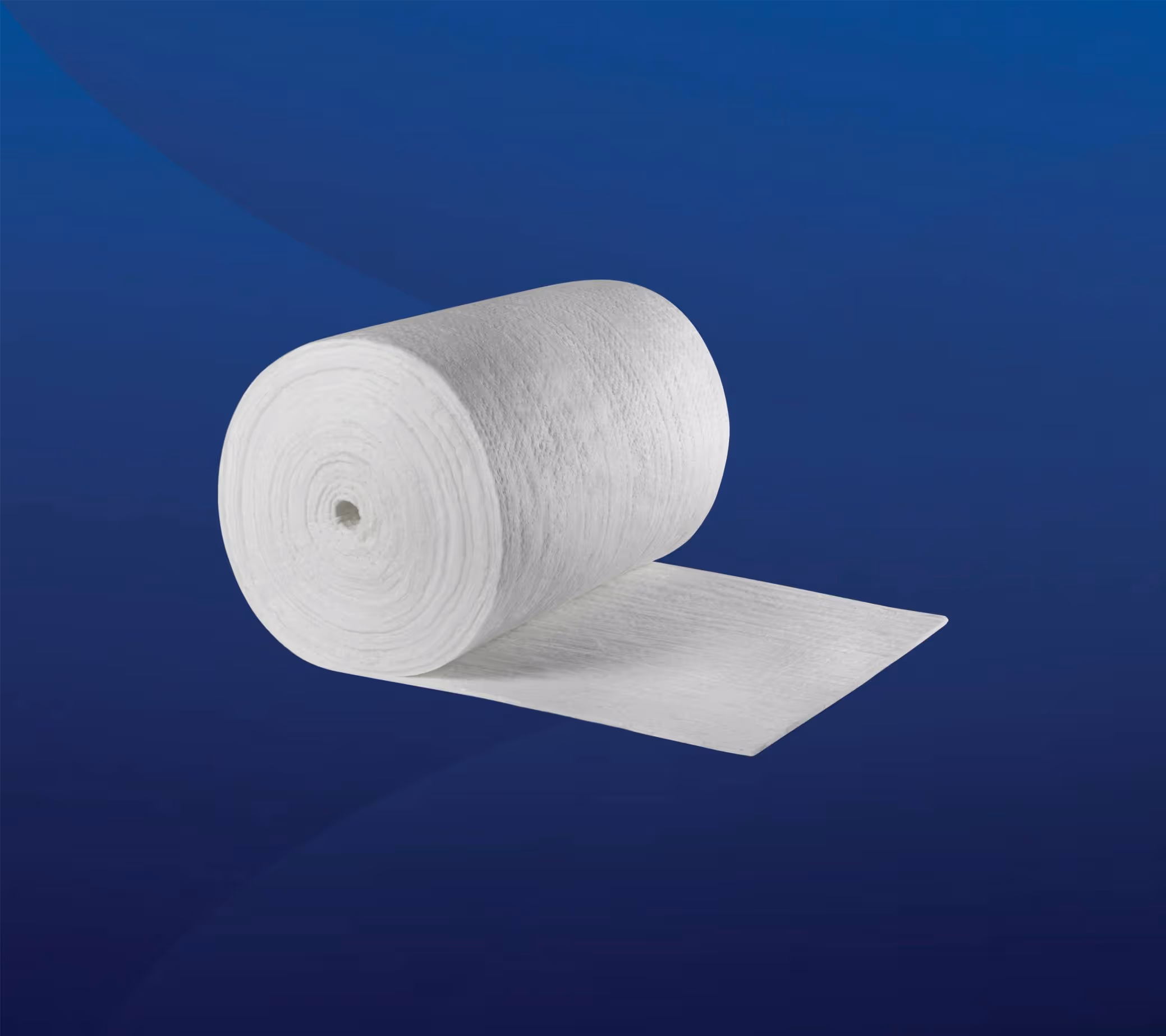

MaxShield® HPS

MaxShield HPS blankets are used in a variety of passive fire protection applications. MaxShield blankets are made from long strand spun and high purity ceramic fibers, forming a strong, flexible needled product which provides superior high temperature insulation properties.

Learn More
MaxShield SMG HI for high temperatures

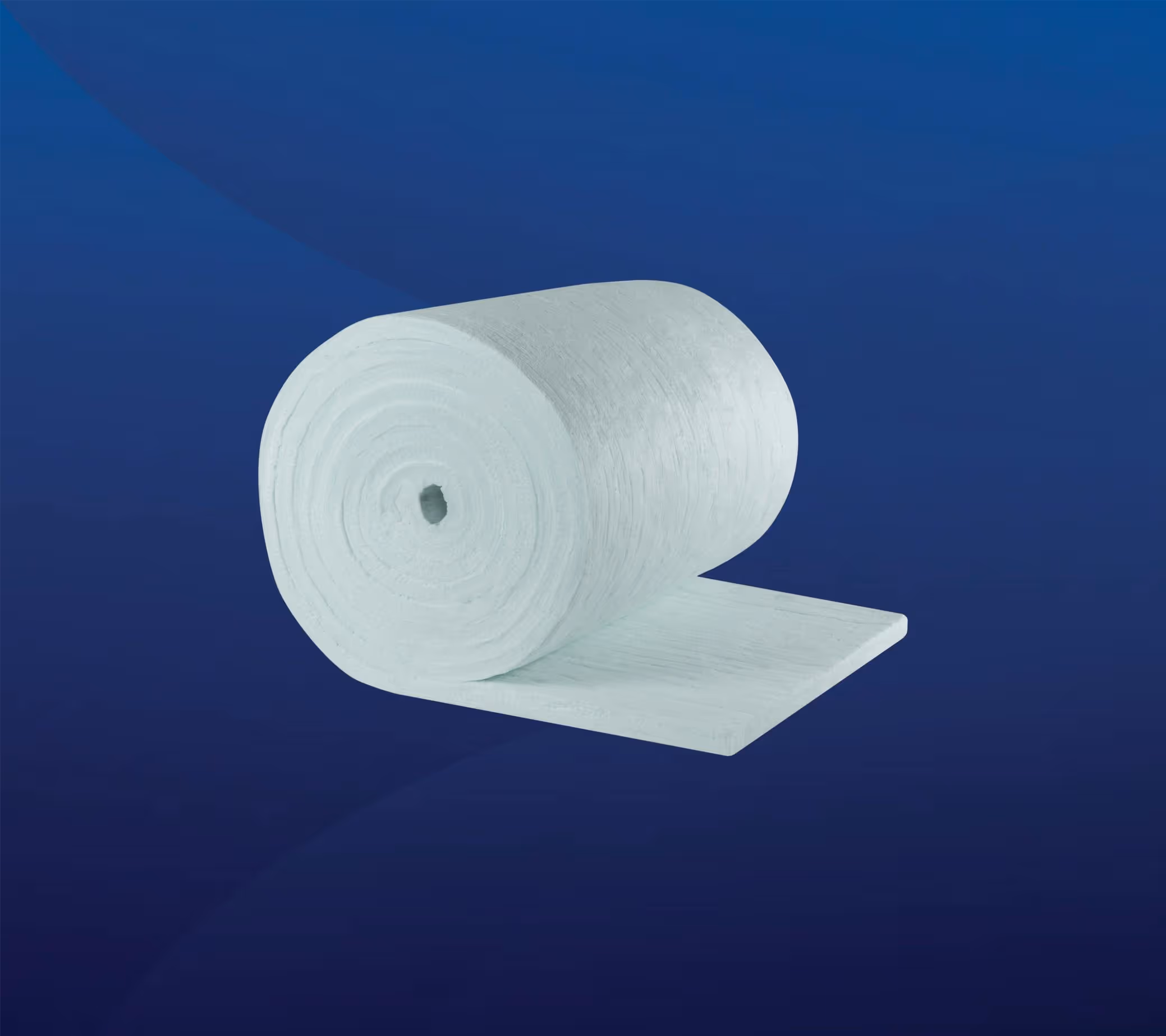

MaxShield® SMG HI
