Ceramic Fiber for Industrial Furnaces: Optimal Thermal Performance

Explore how ceramic fiber revolutionizes industrial furnaces with optimal thermal performance, energy efficiency, and exceptional durability.

By Christian Tavira
Manager of Application Engineering & Technical Support - NUTEC

05/10/2024

4 Minutes

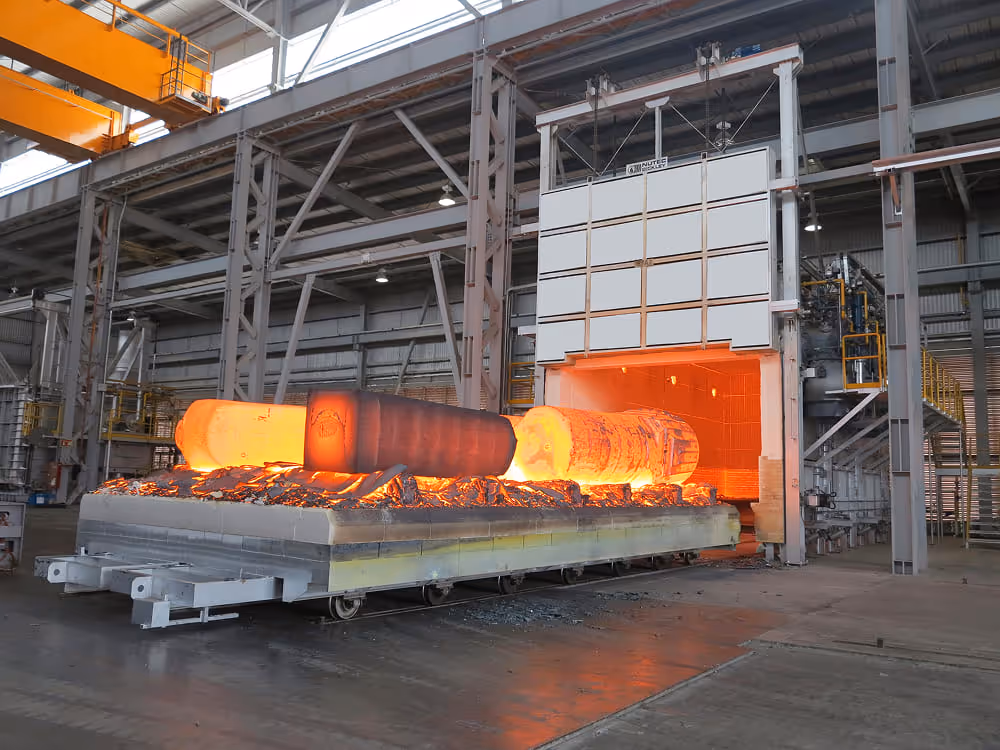

Ceramic fiber for industrial furnaces
05/10/2024

4 Minutes



In the industrial world, thermal efficiency is crucial for operational success. Maintaining constant and controlled temperatures in manufacturing processes ensures product quality and consistency.

This requirement is the reason that ceramic fiber for industrial furnaces plays such an important role. This innovative material revolutionizes the industry by optimize energy savings and improving productivity.

This article will explore ceramic fiber, why it is ideal for industrial furnaces, and how it can significantly improve operational thermal performance.

The importance of ceramic fiber for industrial furnaces

Furnaces are ubiquitous in various industries, from metallurgy to glass and ceramic production, to chemical and food manufacturing.

In this context, ceramic fiber is crucial as a lining material. Its ability to withstand high temperatures, resist thermal stress, and provide thermal insulation makes it an irreplaceable option for maintaining the optimum temperature inside the furnace or kiln, and ensuring process efficiency.


Discover how ceramic fiber insulation is an advanced thermal solution for the industrial sector, ideal for high temperature environments.

Features that make ceramic fiber a go-to choice

Ceramic fiber stands out for its unique characteristics that make it ideal for furnace applications, compared to other types of insulation, such as brick and refractory concrete. Some of these are:

  • Exceptional thermal insulation: Low thermal conductivity minimizes heat loss, translating into greater energy efficiency and lower operating costs.
  • High-temperature resistance: It can withstand temperatures up to 1600°C (2912°F) without degrading, making it ideal for various industrial processes.
  • Lightweight and flexible: Its lightweight design facilitates installation and handling, and permits more versatile furnace designs.
  • Durability: Resists wear, vibration, and thermal shocks, extending the lifespan of the furnace lining.
  • Versatility: It can be adapted to different shapes and geometries, making it suitable for various applications.

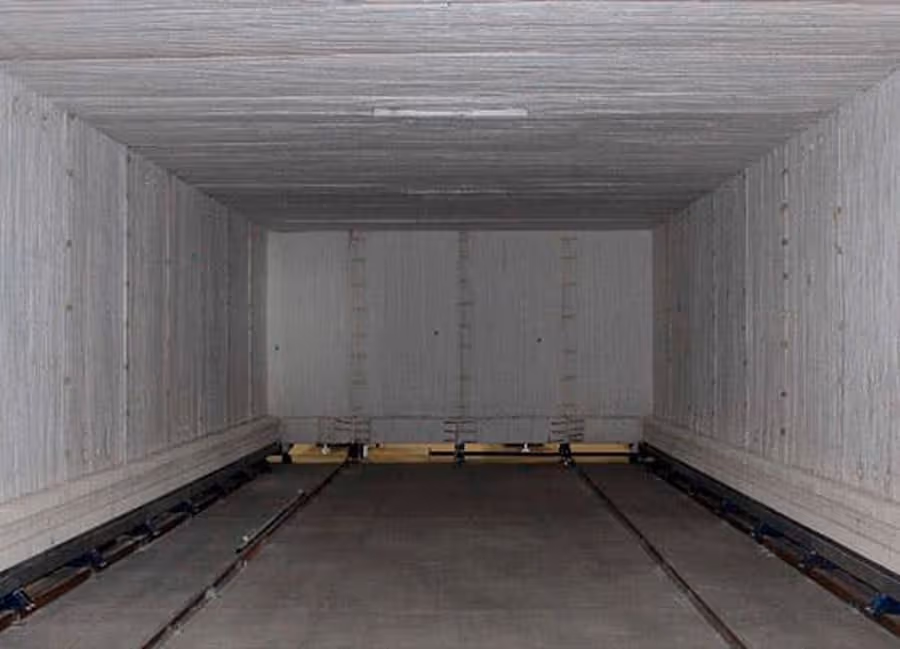

Ceramic fiber furnace lining



Thermal performance and durability

Thermal performance and durability are critical in influencing the effectiveness and lifespan of a furnace. Ceramic fiber plays a crucial role in both aspects.

Thermal Performance

Ceramic fiber contributes to the thermal performance of a furnace in two main ways:

  • Reduction of heat loss: Its low thermal conductivity minimizes heat transfer to the outside of the furnace, which increases energy efficiency and reduces operating costs.
  • Uniform heat distribution: Ceramic fiber allows more uniform heat distribution throughout the furnace's interior. This situation creates a more controlled and consistent firing environment, improving the quality of the final product.

Durability

The quality of any ceramic fiber directly affects the furnace's durability. High-quality ceramic fiber must resist thermal, chemical, and physical degradation. Factors that influence durability include:

  • Chemical composition: The chemical composition of the ceramic fiber determines its resistance to different temperatures and chemical environments.
  • Density: Higher density generally indicates greater strength and durability.
  • Manufacturing process: A controlled manufacturing process ensures the consistency and quality of the ceramic fiber.

Safety and Regulatory Considerations

When designing a furnace using ceramic fiber, it is crucial to comply with occupational safety and health regulations governing the use of refractory materials in industrial settings.

This activity includes ensuring proper waste and emissions management, and using appropriate safety equipment during furnace installation, operation, and maintenance.

It is also vital to verify compliance with local and international standards for insulation materials.


Installation and Maintenance Costs

Choosing the correct lining for an industrial furnace involves performance and durability considerations, and cost analysis of initial installation and maintenance throughout the equipment's life cycle.

In the case of ceramic fiber, these costs can vary depending on several factors:


1. Initial Installation: Initial installation costs may include materials, labor, and any specialized equipment or tools required.

In general, ceramic fiber materials tend to be lighter and easier to handle than other refractory materials, which can reduce costs associated with logistics and installation.


2. Long-term maintenance: Although ceramic fiber is known for its durability and resistance to thermal shock, it still requires regular maintenance to ensure optimal performance over time.

Maintenance may include periodic inspection of the lining for damage or wear, minor repairs to correct cracks or degraded areas, and complete replacement of the lining in the event of irreparable damage or severe wear.


3. Energy efficiency and operation: Ceramic fiber is known for providing superior thermal insulation, which can help reduce energy costs by minimizing heat loss and optimizing process efficiency.

In addition, its ability to withstand rapid heating and cooling cycles can contribute to increased productivity and lower operating costs than other refractory materials that may require longer cycle times or higher energy consumption to reach and maintain the desired process temperatures.


4. Cost-benefit analysis: When evaluating the installation and maintenance costs of a furnace with ceramic fiber lining, it is essential to conduct a comprehensive cost-benefit analysis that considers not only the initial investment but also the operating and maintenance costs over time, as well as the benefits associated with improved performance, energy efficiency, and extended equipment life.

While ceramic fiber may have a higher initial cost than other insulation materials, its benefits in terms of performance and durability often outweigh the additional expenditure. This situation results in a lower total cost of ownership and a more favorable long-term return on investment, making it one of the best options for industrial furnaces.

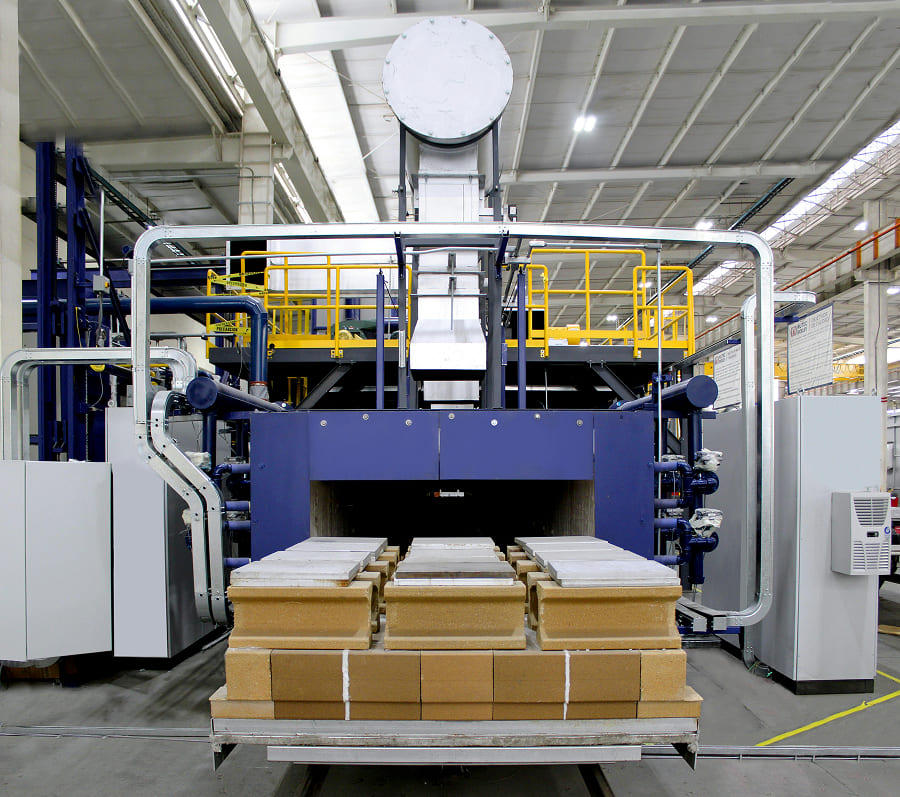

Maintenance of ceramic fiber in industrial furnaces



Challenges of ceramic fiber in industrial furnaces

Although ceramic fiber offers numerous advantages in terms of thermal performance and durability, its use in industrial furnaces also poses many challenges that must be addressed to ensure safe and efficient operation. Some challenges include:

  • Susceptibility to chemical attack: While ceramic fiber is known for its resistance to high temperatures, it is crucial to consider its potential susceptibility to chemical attack under certain exposure conditions.

    It is recommended that the conditions of use be carefully evaluated and that the appropriate ceramic fiber be selected to minimize the risk of damage caused by corrosive chemicals.


  • Durability and mechanical strength: Some types of ceramic fiber may be susceptible to abrasion and compression, which can affect their durability and mechanical strength in specific applications.

    Selecting an appropriate ceramic fiber and ensuring its proper installation are essential to securing long-term performance.


  • Regulatory compliance: There are strict regulations and standards related to the use of ceramic fiber, especially in industrial and commercial settings.

    Complying with these regulations can be challenging for manufacturers and users of ceramic fiber products.

Applications and use cases of ceramic fiber

Ceramic fiber is used in various industrial furnaces due to its versatility, heat resistance, and ability to withstand extreme operating conditions. Here are some of the most common applications involving high temperatures:


Melting and annealing furnaces in the glass and ceramics industry

In the glass and ceramics industry, melting and firing furnaces and kilns are essential for producing a wide range of products, from glass bottles and containers to ceramic tiles and tableware.

Ceramic fiber is used in these furnaces and kilns to provide thermal insulation and heat resistance, ensuring uniform and controlled temperatures inside the chamber.

Its ability to withstand high temperatures and thermal shock makes it ideal for applications requiring rapid and repeated heating and cooling cycles.

Heat treatment furnaces in the metalworking industry

In metalworking, heat treatment furnaces are used for annealing, tempering, quenching, and other heat treatment processes for metals.

Ceramic fiber is used in these furnaces to provide a controlled and uniform high-temperature environment, ensuring the quality and integrity of metal products.

Its heat resistance and ability to withstand corrosive environments make it ideal for applications where metals are handled at high temperatures and in controlled atmospheres.

Drying and calcination furnaces in the chemical and food industries

In the chemical and food industries, drying and calcination furnaces evaporate, remove moisture, and are used to cause reactions in chemicals and food products.

Ceramic fiber is used in these furnaces to provide thermal insulation and heat resistance, ensuring stable and controlled temperatures throughout the process.

Its low thermal conductivity and ability to resist chemical corrosion make it ideal for heat- and corrosion-sensitive applications.

Other types of specialized furnaces

Ceramic fiber is also used in a variety of other specialized furnace types, including crucible furnaces for metal melting, tunnel kilns for the production of refractory bricks and ceramics, and high temperature furnaces for the manufacture of advanced materials such as carbon fiber and technical ceramics.

Its versatility and adaptability make it an ideal choice for a wide range of industrial processes where temperature and process consistency are critical to success.

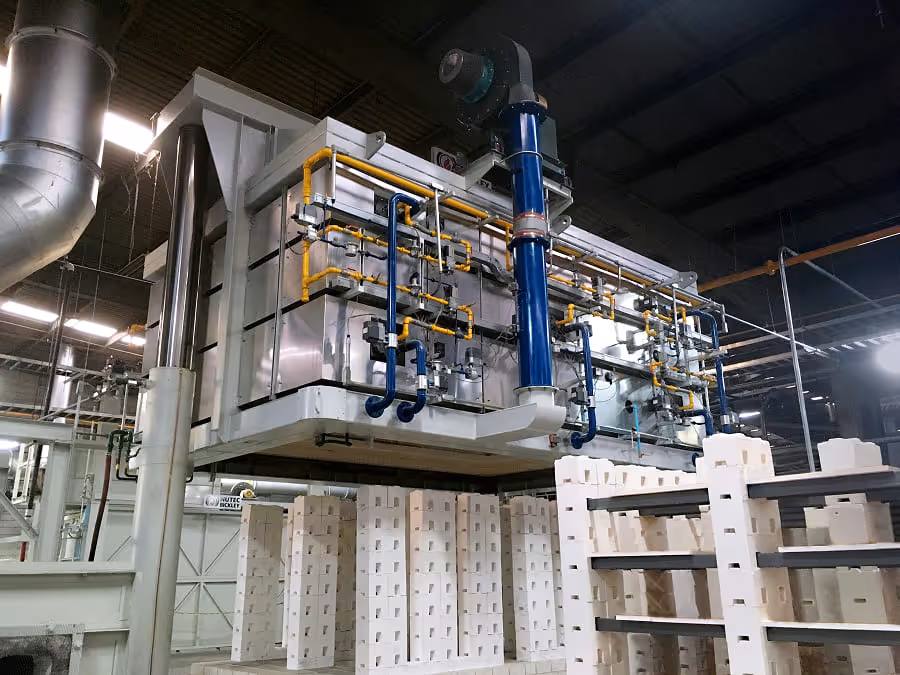

High temperature furnaces for manufacturing

Considerations when choosing ceramic fiber for different types of furnaces

Choosing the correct type of ceramic fiber is essential to ensure optimal performance and long furnace life in various industrial applications. Considering the following factors, the most suitable ceramic fiber can be selected for specific needs:

  1. The operating temperature of the furnace: Different types of ceramic fiber are designed to withstand various temperature ranges. Standard grades may be suitable for temperatures up to 2300°F (1260°C), while high-temperature grades can withstand conditions up to 3000°F (1650°C).

  2. Chemical resistance and compatibility with processed materials: The chemical resistance of ceramic fiber and its compatibility with the materials processed in the furnace are critical considerations, especially in applications where corrosive or aggressive chemicals are handled.

  3. Furnace Liner Size and Shape Requirements: Some furnaces may have complex geometries or require customized linings to suit their specific applications. It is crucial to select the appropriate ceramic fiber product that can quickly adapt to diverse shapes and sizes without compromising its structural integrity or thermal performance.

The right choice of ceramic fiber improves process efficiency and contributes to the safety and quality of the final product, ensuring the long-term success of industrial operations.

Optimizing furnace performance and efficiency with NUTEC ceramic fiber

NUTEC offers a wide range of high-quality ceramic fiber products, including its line of blankets, designed to meet the most demanding requirements of industrial processes.

The ceramic fiber blankets provide excellent thermal insulation, helping to reduce heat loss and maintain a uniform temperature within the industrial furnace. Additionally, their resistance to thermal shock ensures a long service life.

NUTEC offers quality products and expert advice to help you select the right ceramic fiber blanket for your industrial furnaces.

The technical team is available to provide you with support in installation and maintenance, thus ensuring the optimal performance of your industrial furnace. Trust NUTEC to optimize the efficiency and productivity of your processes.

Contact us today for more information or to start your furnace thermal insulation project.

Frequently asked questions

How to achieve effective thermal insulation in an industrial furnace?

An industrial furnace’s thermal insulation is achieved through the use of insulating materials that reduce heat transfer between the hot interior and the surrounding environment.

Some options are mineral wool, refractory brick, refractory concrete, and ceramic fiber. The latter is widely used in the industry due to its low thermal conductivity and ability to withstand high temperatures.


How to choose the best insulation for an industrial furnace?

The choice of the best insulation for an industrial furnace depends on several factors, such as the operating temperature, the specific application of the furnace, the type of process that takes place, and the durability and performance requirements.

However, ceramic fiber is considered one of the best insulators for industrial furnaces due to its excellent thermal properties and other advantages, such as its light weight, resistance to thermal shocks, and ease of installation.

Choosing the best specific insulation for an industrial furnace will require a detailed evaluation of the furnace's requirements and operating conditions.


What are some advantages of ceramic fiber vs traditional refractory material?

  • Lightweight
  • Greater energy efficiency
  • Flexibility and adaptability
  • Shorter installation and maintenance time



How to retain the heat within an industrial furnace?

The best option is to insulate the industrial furnace with ceramic fiber on its sides, top, and back so that heat is not lost through the walls, it takes less time to heat up, and it maintains the heat inside for longer.



What are some types of ceramic fiber products used for insulation in furnaces?

  • Ceramic fiber modules
  • Ceramic fiber Macromodules
  • Ceramic fiber boards
  • Ceramic fiber blanket
